Micro USB Connector

Size

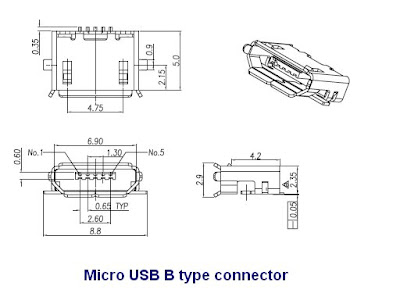

B type MU-05F4-14/23 8.8*6.0*2.9
AB type MU-05F4-15/22 8.8*6.0*2.9 (FOR OTG)

特長
1. 節省空間 (小型超薄化) ， 比較MINI USB 體積空間減少了50%以上。
2. 長壽命 ，高達10000 次插拔。
3. 相容 USB1.1 (低速 1.5Mb/S, 全速 12Mb/s) 和 USB 2.0 (高速 480Mb/s)。
4. 支援 USB OTG功能， 在無主機 (PC)情況下 ，可直接實現資料傳輸。
5. 同時提供數據傳輸與充電 (最大供電能力為 1800mA)。
6. 防呆(盲插) 結構設計 。

規格
1.ELECRTICAL PROPERTIES:
1-1.CONTACT CURRENT RATING:1.8A(ONLY PIN1.5) AT THE SAME TIME
0.5A AT CONTACT PIN 2,3,4 OTHER 1A(ONLY PIN2,3 4).
1-2.CONTACT RESISTANCE:30m 0hm MAX.
1-3.INSULATION RESISTANCE:100M 0hm MAX.
1-4.DIELECTRIC WITHSTANDING VOLTAGE :AC 100V AC/1 MINUTE 10mA.

2.MATERIAL:
2-1.PIN:PHOSPHOR BRONZE.
2-2.HOUSING:LCP.
2-3.SHELL:BRASS.

3.PLATING:
3-1.PIN:GOLD 10u" MIN ON CONTACT AREA.
UNDERPLATED NICKEL 60u" MIN OVER ALL.
3-2.SHELL:NICKEL 60u" MIN OVER ALL.

應用
MOBILE PHONE, DSC, DV, PDA, PND, MP3, MP4, NB, PC AND OTHER MOBILE DEVICE.

超小型 ROTARY ENCODER SWITCH

SHINMEI SSS-60MD SERIES

TYPE & SIZE

SSS-60MD-8-1-T20 8 段 6.8*6.8*3.1mm

SSS-60MD-8-1-T20 10段 6.8*6.8*3.1mm

SSS-60MD-8-1-T20 12段 6.8*6.8*3.1mm

特長

小型化模式開關,節省空間

段落感清晰,避免操作失誤

規格

1. RATING : DC12V 50mA Max

2. 一回路 共通

3. 壽命　15~20回轉/分 7000回 (1回轉=360度)

應用 DSC, DV, MP3, GPS, PHONE, MINI DEVICE...

12 PULSE ENCODER

NOBLE (帝國通信) XRE094 SERIES

Type & Size

7014 DIP 16*6 mm

7016 SMD 16*3.8 mm

特長

提供數位音量、頻道、MENU控制功能

規格
Operating Voltage: DC 5V

Rated Current: 0.5mA(terminals A and B); 1mA(terminal C)

Resolution: Number of output pulses in 360 rotation (每段30度)

Package : 450 pcs/Reel

應用
NOTE BOOK, DAB, DVB-T , PDA, OTHER AUDIO DEVICE....

SHICOH 無鐵心型 SMD Vibration Motor

SHICOH 創意先進 B2JB

Size: W4.6mm x H4.8mm x L12.95mm

特長
無鐵心型振動馬達 2.7V SMD motor.

規格
Rated Speed: 9500 +/- 2000 min

Rated Current: 60 +/- 15mA

Starting Voltage: Less than 2.4 VDC

Starting Current: Less than 90 mA

Noise: Less than 50dB(A) with background noise less than 28dB.

應用
CELL Phone , GPS, Handheld Devices...

MOQ: 1000 pcs

Push type SIM connector

山一電機 FMS006 SERIES



照片由左-右

1. FMS006Z-2001-1 (含switch , 逆插入防止 , 20.85*26.5*2.4 mm)

Features

SIM/USIM card connector (SMT type; Solder-terminal-out)
Width 20.85mm / Length 26.5mm / Height 20.85mm
Card-detect function
Polarized connector preventing mis-mating
Tape & reel packaged for pick-and-place machine
Conforms to GSM* Standard
RoHS compliant

Specifications

Performance
Operating Temperature -55°C to +85°C
Durability 5,000 cycles
Insulation Resistance 500MΩ min. @ 500VDC
Withstanding Voltage 250VAC rms / minute
Contact Resistance 100mΩ max.
Voltage Rating 5V rms
Current Rating 0.5A

Materials
Insulator Liquid Crystal Polymer, UL94V-0, Black
Contact Mating face:
Copper Alloy, Gold plating
Solder terminal:
Copper Alloy, Gold plating, Copper-Tin Alloy plating

2. FMS006-2600-0 (shell 設計, 逆插入防止 , 18.7*27.85*1.95 mm)

Features
Low-profile top-mounting SIM/USIM card connector (SMT type; Solder-terminal-out)
Width 18.7mm / Length 27.85mm / Height 1.95mm
Polarized connector preventing mis-mating
Tape & reel packaged for pick-and-place machine
Conforms to GSM* Standard
RoHS compliant
Pb-free mounting

Specifications
Performance
Operating Temperature -55°C to +85°C
Durability 5,000 cycles
Insulation Resistance 500MΩ min. @ 500VDC
Withstanding Voltage 500VAC rms / minute
Contact Resistance 100mΩ max.
Voltage Rating 5VAC rms
Current Rating 0.5A


Materials
Insulator Liquid Crystal Polymer, UL94V-0, Black
Contact Mating face:
Copper Alloy, Gold plating
Solder terminal:
Copper Alloy, Copper-Tin Alloy plating, Gold plating


3. FMS006-2310-0 (SIM卡lock , 逆插入防止 , 20.85*29.55*3.75 mm)

Features
SIM/USIM card connector employing one-push lock mechanism
Polarized connector preventing card mis-mating
Tape & reel packaged for pick-and-place machine
Conforms to GSM* Standard
RoHS compliant
Pb-free mounting

Specifications
Performance
Operating Temperature -55°C to +85°C
Durability 5,000 cycles
Insulation Resistance 500MΩ min. @ 500VDC
Withstanding Voltage 250VAC rms / minute
Contact Resistance 100mΩ max.
Voltage Rating 5V rms
Current Rating 0.5A


Materials
Insulator Liquid Crystal Polymer, UL94V-0, Black
Contact Mating face:
Copper Alloy, Gold plating
Solder terminal:
Copper Alloy, Copper-Tin Alloy plating

應用: PDA PHONE, PND , NOTE BOOK, UMPC, OTHER MOBILE DEVICE....

JAE FB8 series upper contact 0.3mm FPC connector

JAE has developed the FB8 series, an upper contact, one-touch FPC connector for small portable devices. One main feature of this 0.3mm pitch FB8 series is the rear access rotating actuator mechanism being able to withstand the lifting of the applicable FPC.

特長

1. 容易組裝操作 (FPC 後方置入轉動型)
2. Pitch 0.3mm , 適用FPC 厚度 0.2mm
3. 本體寬度 4.3mm , 高度 1.2mm
4. 上接點 (upper type)
5. SMT type
6. 壽命 20 times

Easy actuator operation due to rotation mechanism
FPC pitch of 0.3mm
Applicable FPC thickness of 0.2±0.03mm
Supply of SMT type for automatic mounting with embossed tape
Contact with solder wicking countermeasure
Connector with 4.3mm depth (when placed to board) and 1.2 mm height
Durability: 20 times

規格
General specifications

Items Specification and performance
No. of contacts - 17, 23, 25, 29, 31, 33, 35, 39 pos.
Rated current - 0.35A per terminal
Rated voltage - AC, DC 50V per terminal
Contact resistance - 20 millohms or less
Insulation resistance - 100 megaohoms or more.
Operating temperature - -40 Cel to +85 Cel
Durability - 20 times
Applicable FPC - 0.3±0.03 staggered pitch with lining

Materials / Finishes

Components Materials Finishes
1 Contact Copper alloy Contact area: Au plating over Ni Terminal area: Au flash over Ni
2 Base insulator Synthetic resin No(UL94V-0)
3 Actuator Synthetic resin No(UL94V-0)

應用
include mobile phones, DSCs, PDA/HPCs, PCs, navigation and other portable devices.

規格資料

HDMI 1.3 MINI C connector 60U series

HDMI 1.3 MINI C connector 60U series

Pitch 0.4mm Mini HDMI Receptacle, 19pos, Right Angle SMT Type, Board Mount Connector

HDMI 1.3 C type connector/cable/adapter

特長

1. Higher speed: HDMI 1.3 increases its single-link bandwidth from 165MHz (4.95 gigabits per second) to 340 MHz (10.2 Gbps) to support the demands of future high definition display devices, such as higher resolutions, Deep Color and high frame rates. In addition, built into the HDMI 1.3 specification is the technical foundation that will let future versions of HDMI reach significantly higher speeds.

2. Deep color: HDMI 1.3 supports 30-bit, 36-bit and 48-bit (RGB or YCbCr) color depths, up from the 24-bit depths in previous versions of the HDMI specification.

-Lets HDTVs and other displays go from millions of colors to billions of colors
-Eliminates on-screen color banding, for smooth tonal transitions and subtle gradations between colors
-Enables increased contrast ratio
-Can represent many times more shades of gray between black and white. At 30-bit pixel depth, four times more shades of gray would be the minimum, and the typical improvement would be eight times or more

3. Broader color space: HDMI 1.3 removes virtually all limits on color selection.

-Next-generation “xvYCC” color space supports 1.8 times as many colors as existing HDTV signals
-Lets HDTVs display colors more accurately
-Enables displays with more natural and vivid colors

4. New mini connector: With small portable devices such as HD camcorders and still cameras demanding seamless connectivity to HDTVs, HDMI 1.3 offers a new, smaller form factor connector option.

5. Lip Sync: Because consumer electronics devices are using increasingly complex digital signal processing to enhance the clarity and detail of the content, synchronization of video and audio in user devices has become a greater challenge and could potentially require complex end-user adjustments. HDMI 1.3 incorporates an automatic audio/video synching capability that allows devices to perform this synchronization automatically with accuracy.

6. New lossless audio formats: In addition to HDMI’s current ability to support high-bandwidth uncompressed digital audio and currently-available compressed formats (such as Dolby® Digital and DTS), HDMI 1.3 adds additional support for new, lossless compressed digital audio formats Dolby® TrueHD and DTS-HD Master Audio™.

規格

Electrical:

Contact: Current Rating: 0.5A Min.
Voltage Rating: 40V AC (rms)
Withstanding Voltage:
500V AC (Unmating Connector)
300V AC (Mating Connector)
Insulation Resistance:
100 MEGAOHMS Min. (Unmated)
10 MEGAOHMS Min. (Mated)
Contact Resistance: 30 MILLIOHMS Max.
Working Temperature: -25ºC ~ +85ºC

Mechanical:

Insulator Material: High-Temperature thermoplastic (UL94V-0)
Contact: Copper Alloy.
Insertion Force: 44.1 N Max.
Withdrawl Force: 7.0 N Min. 25 N Max.

應用

small portable devices of HD camcorders, still cameras, PCs, PSS, HDTVs, DVD Players etc..

規格資料

什麽是HDMI？

HDMI(高解析多媒體介面)是近來快速普及的一種數位顯示介面技術，HDMI是從DVI(Digital Video Interface)介面發展而來，它的最大特色是整合影音訊號一起傳輸，與傳統影音分離傳輸不同。2006年六月HDMI工作小組推出最新的1.3版規範，一舉將其頻寬倍增到10.2Gbps，並支援更高的色深數。

1. 高速傳輸－HDMI 1.3版將原先4.96Gbps的頻寬倍增至10.2Gbps，藉由將Single Link MD 的165MHz寬度提升至340MHz， 希望藉Single Link即可符合未來更高流量的高解析數位內容，若是有需要，也可採用B型雙TMD規格，以 更進一步加大頻寬。

2.更高色數－現有的HDMI 1.1及1.2版僅能支援到24bit色深，1.3版HDMI介面則是大幅擴充至30-bit、36-bit以及48-bit（RGB或YCbCr），具有輸出一億色以上的能力，並大幅增加對比的階層。此外，支援新一代的〝xvYCC〞color space，號 稱具有目前color space規格的1.8倍顏色訊號輸出能力。

3.支援無損音效－在音源傳輸方面，由於目前流行的音效規格大多是採用壓縮過的音色，因此在動態表現上難免會有失真的狀況，HDMI支援了多軌高流量的無壓縮音源或非失真壓縮音源（如Dolby TrueHD和DTS-HD Master Audio）。

HDMI WEB http://www.hdmi.org

RBS12 四方向 TILT SENSOR SWITCH

產品功能運用

45° 傾斜偵測

旋轉偵測

特長

1.體積小，不佔空間。

2.外殼採用高絕緣性塑膠材料，可避免外殼導電及生鏽。

3.端子與銅珠之表面均鍍金，可增加其產品壽命。

4.所有塑膠材料均使用高耐溫之工程塑膠，且為符合UL94V-0 等級之防火性材料。

5.隱藏式表面黏著型端子,實際應用在PCB 面積更小更方便。

6.適用於垂直的PCB。

7.最適合應用在IC 之觸發訊號。

8.可完全替代水銀開關，符合環保需求。

規格

Electrical

1.接點容量 25mA，24VDC

2.接觸電阻 初期值：5Ω(最大值). 壽命試驗值：10Ω(最大值)

3.接點型式 常開接點

4.絕緣電阻 10MΩ(最小值)， 100 VDC

5.介電強度 100 VDC(最小值) ，1分鐘

6.電容量 5pF (最大值)

Mechanical

1.溫度範圍 工作中：-25°C to +85°C

2.端子拉力 500 gf，1分鐘

3.操作壽命 100,000 週期

4.操作導通率 最低90%以上

5.濕度 95% RH 40° C，96小時

6.焊接性 錫爐溫度260±5°C 試驗時間5±0.5 秒，錫覆蓋面積達95%

應用

DSC, PDA, LCD MONITOR, DPF, PMP,電器產品.....

材料BOM

1.本體 LCP+玻纖， UL 94V-0

2.銅珠 銅合金，鍍金

3.端子 銅合金，鍍金

CTS 254 SERIES 微型搖桿

特長

1. 長使用壽命 (VR LIFE 1000K次 ; Switch 200K次)

2. 支援 SMD / DIP TYPE

3. 同功能最小型化設計 (本體 10.8 *10.8 *5 mm)

4. 支援 center push switch

5. 可變電阻分壓式控制,不需搭配driver

6. KNOB 可依照客戶設計調整

規格

Mechanical

Operation force: 140+/-50 gf.cm (+/- 25度)

Accuracy of reset position: +/- 3度

Stick strength:

Push strength -3 Kgf. 3 sec Min.

Pull strength -5 Kgf. Min.

Torsion strength -1 Kgf.cm 3 sec Min.

Side withstanding strength -0.2 Kgf.Min.

Terminal type : SMD / DIP

Electrical

Total resistance: 10K +/-30% Ohm

Rated power: 0.0125W

Max. operating voltage: 50 V AC, 8V DC

Return output voltage range: 38% ~ 62% (overall total voltage)

Noise: CRV- 3% Max. of total resistance

Linearity: +/-6%

Insulation resistance: 100M Ohm Min.

Dielectric strength: 2mA Max. at 250 V AC 50Hz 1 minute

應用

UMPC, Game device, PND, Remote control.....

規格資料

ALPS 8-direction 超薄滑動型方向開關

特長

1. 8-direction sliding operation with center push device

2. small size and thin type

3. applied silicon rubber for self return

4. available for reflow soldering

5. customer modification knob is applicable

應用
mobile phones,DSC,PDA,MP3...

規格

travel

slide 0.8mm

push 0.2mm

operating force

slide 1N
push 2.5N

operating life

slide 500K

push 500k

夾板型 3.5mm AV JACK (4段 3開關)

奧柏科技 TSH-3987D SERIES




特長:
1. 支援標準 3.5mm PLUG 接頭(4Pole)
2. 夾板型 SMT type (有效降低 PCB 板上高度)
3. 支援三組開關使用
4. 三組左右設計定位 PIN (防止定位問題)
5. 側面平衡柱設計, 強化零件本體插拔力量
6. 長壽命 5000次插拔


應用: DSC, PDA, PND, MP3, DVB-H, PHONE, OTHER MEDIA DEVICE....



規格:
Product type 3.5mm SMD Stereo Jack

No. Of Poles: 4 No. Of Contacts: 7

Withst and Voltage: 500V

Insulation Resistance: 50 Megohms

Contact Resistance: less than 30 Milliohms

Mounting Type: Break PCB SMD


規格資料

側面超薄AF開關 (side double action switch)

神明電機 TSW-20 SERIES




特長:
1. 超小型 (寬 5.5* 5.0 高 1.7)
2. SMT type
3.第一段感具click感 1.4N (或無click感) ; 第二段力量 3.5N
4.具接地端子
5.具準確回彈力量
6.具定位柱設計
7.業界同類型最薄 type (具兩段click感)
8.長壽命 15萬次


應用: DSC , PDA , PND , CELLULAR PHONE....

規格:

Ratings (max.) (Resistive load) 50mA 12V DC
Contact resistance 100 milliohm max. (Initial)
Insulation resistance 100 megohm min. 500V DC
Withstanding voltage 250V AC for 1min.

Operating force
With 1st click feeling type : 1st 1.4N,2nd 3.5N

規格資料

正向超薄AF開關 (Double action Tact Swtich)

神明電機 TSW-15 SERIES 自動對焦開關

特長:

1. 超小型 (寬 5.0 * 5.0 高 0.75)

2. SMT type

3.第一段感有3種類 具click感(0.7N, 1.0N) 或 無click感

4.第二段力量 2.4N 或 3.5N

5.具接地端子

6.具準確回彈力量

7.PIN 腳有 J type 與平角

8.具定位柱設計

應用: DSC , PDA , PND , CELLULAR PHONE....

規格:

Ratings (max.) (Resistive load) 50mA 12V DC

Contact resistance 100 milliohm max. (Initial)

Insulation resistance 100 megohm min. 500V DC

Withstanding voltage 250V AC for 1min.

Operating force

With 1st click feeling type ;

1st 0.7N,2nd 2.4N / 1st 1.0N,2nd 2.4N

1st 0.7N,2nd 3.2N / 1st 1.0N,2nd 3.2N

Without 1st click feeling type ;

1st <0.55n,2nd>

規格資料

Tensor 光電式傾斜開關 (螢幕自動翻轉功能)

TS0002-A , TS1002 (L type for 水平穩定功能)

結構原理說明 :

一. 零件構成: IR LED, PT, Housing and steel ball 零件拆解圖如下:


二. 基本原理:

1. 重力引响 2. 鋼珠位置改變 3. 遮蔽紅外LED/PT 傳輸 4. 輸出信號改變

當傾斜發生時，內部鋼珠因引力導引改變位置，造成IR光芒遭遮蔽，使其更換輸出信號。

三. 規格 & Application Circle
四. 應用: DSC , DFP(數位相框) , PND , PCCAM , LCD MONITOR....

簡報資料
