使用方式: 感應旋轉或搖動
使用時機: 螢幕自動旋轉或切換
使用時機: 螢幕自動旋轉或切換

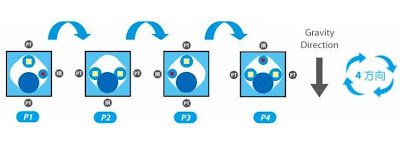

動作原理:
外觀說明:
電路設計:
可應用功能:
1)影像旋轉或前後頁相片選擇
2)桌布更換
3)歌曲切換
4)靜音開關
5)簡易遊戲
可應用功能:
1)影像旋轉或前後頁相片選擇
2)桌布更換
3)歌曲切換
4)靜音開關
5)簡易遊戲
應用產品: PDA, DSC, E-Book, MID, Mobile, Netbook…
2009-06-15
2008-08-22
Mini Coaxial Cable Connector 極細線同軸連接器
JAM SLH/SLV Series
JAM 推出了應用於手機和掌上型電腦、小型液晶電視等產品上極細同軸線連接器。適用設計於液晶部和主體部分需要高速傳送信號設計的0.4mm間距超低型基板對電線用連接器「SLV系列」「SLH系列」。
電線部分采用極細同軸線、因於從前的FPC和WIRE相比是更加具有屏蔽性的構造,所以EMI特性優越、可高速傳送信號。即使因長度和PIN數變更引起的線束設計改變時也可容易更改形狀進行對應,不需像FPC等產品一樣進行模具改造的費用。另因其耐彎曲性、耐扭轉性優越,在筆記本電腦的主體和液晶之間的連接部分、手機或掌上電腦、小型數碼相機等需要轉動的構造上充分發揮其效果。
「SLH系列」是水平插入類型，實現了在基板上實際安裝高度達1.0mm的超低化,「SLV系列」采用脫離附著膠帶,減輕了在母端插件電線所承受負荷。同時,在插件時不需專門的工具。
The 0.4mm pitch, very low back, substrate to wire connectors “SLV series” and “SLH series” have been released. These connectors are applicable to such high speed transmission circuit that connects between the liquid crystal unit and main body in mobile phone, PDA, liquid crystal TV, etc. The cable adopts thin coaxial wire, and since this wire has shielding function compared to the conventional FPC and discrete wire, this cable features superior EMI characteristics, and enables high speed transmission. In case of modification in harness design accompanying a change in the length or in the number of electrodes, the shape of this cable can be easy changed, and remodeling cost of metal mold, etc., which is a requisite of FPC, is now not needed. Further, superior flexibility and twistability of this cable work quite well especially when used at a connection between the main body and liquid crystal screen of a notebook computer or in a mobile phone, PDA, small digital camera, etc. having swiveling screen. The horizontal insertion type “SLH series” features very low substrate mounting height of 1.0mm, while the “SLV series” has reduced the load applied to the wire upon removal and installation of the wafer by employing the housing mounting and demounting tape. No special tools are needed for removal and installation.
Feature:
SLH Series:
1. Side entry type
2. Low back of 1.0mm in substrate mounting height
3. Pitch 0.4mm
4. 20/30/40 pin
SLV Series:
1. Vertical entry type (the electric wire is a horizontal putting out)
2. 1.5mm in substrate mounting height
3. The position equipped with the substrate is acceptable in not only the substrate edge side but also the enter. 4. The load that hangs to the electric wire when the wafer is detached by adopting the housing detaching tape is reduced, Moreover, a special for detaching is also unnecessary.
5. Pitch 0.4mm
6. 30/40/50 pin
Specifications:
Rated Voltage: AC.DC50V
Rated Current: 0.3A
Operating Temperature Range: -40 ～ +85degrees
Storage Temperature Range: -55 ～ +85degrees
Application Wire Size : AWG#40～42
Application:
DSC, DV, Phone, PDA, Notebook, Mobile TV…..
規格資料:
SLH
SLV
JAM 推出了應用於手機和掌上型電腦、小型液晶電視等產品上極細同軸線連接器。適用設計於液晶部和主體部分需要高速傳送信號設計的0.4mm間距超低型基板對電線用連接器「SLV系列」「SLH系列」。
電線部分采用極細同軸線、因於從前的FPC和WIRE相比是更加具有屏蔽性的構造,所以EMI特性優越、可高速傳送信號。即使因長度和PIN數變更引起的線束設計改變時也可容易更改形狀進行對應,不需像FPC等產品一樣進行模具改造的費用。另因其耐彎曲性、耐扭轉性優越,在筆記本電腦的主體和液晶之間的連接部分、手機或掌上電腦、小型數碼相機等需要轉動的構造上充分發揮其效果。
「SLH系列」是水平插入類型，實現了在基板上實際安裝高度達1.0mm的超低化,「SLV系列」采用脫離附著膠帶,減輕了在母端插件電線所承受負荷。同時,在插件時不需專門的工具。
The 0.4mm pitch, very low back, substrate to wire connectors “SLV series” and “SLH series” have been released. These connectors are applicable to such high speed transmission circuit that connects between the liquid crystal unit and main body in mobile phone, PDA, liquid crystal TV, etc. The cable adopts thin coaxial wire, and since this wire has shielding function compared to the conventional FPC and discrete wire, this cable features superior EMI characteristics, and enables high speed transmission. In case of modification in harness design accompanying a change in the length or in the number of electrodes, the shape of this cable can be easy changed, and remodeling cost of metal mold, etc., which is a requisite of FPC, is now not needed. Further, superior flexibility and twistability of this cable work quite well especially when used at a connection between the main body and liquid crystal screen of a notebook computer or in a mobile phone, PDA, small digital camera, etc. having swiveling screen. The horizontal insertion type “SLH series” features very low substrate mounting height of 1.0mm, while the “SLV series” has reduced the load applied to the wire upon removal and installation of the wafer by employing the housing mounting and demounting tape. No special tools are needed for removal and installation.
Feature:
SLH Series:
1. Side entry type
2. Low back of 1.0mm in substrate mounting height
3. Pitch 0.4mm
4. 20/30/40 pin
SLV Series:
1. Vertical entry type (the electric wire is a horizontal putting out)
2. 1.5mm in substrate mounting height
3. The position equipped with the substrate is acceptable in not only the substrate edge side but also the enter. 4. The load that hangs to the electric wire when the wafer is detached by adopting the housing detaching tape is reduced, Moreover, a special for detaching is also unnecessary.
5. Pitch 0.4mm
6. 30/40/50 pin
Specifications:
Rated Voltage: AC.DC50V
Rated Current: 0.3A
Operating Temperature Range: -40 ～ +85degrees
Storage Temperature Range: -55 ～ +85degrees
Application Wire Size : AWG#40～42
Application:
DSC, DV, Phone, PDA, Notebook, Mobile TV…..
規格資料:
SLH
SLV
2008-03-14
Displayport Connector
62U Series
1. Enable a digital display connection as a viable alternative to VGA
2. Displayport handles digital transfers at rates up to 10.8Gbps. Support 2560x1600.2048x1536 high resolution.
3. It support deep color 30/36 bit.
4. It supports digital audio and video, with bandwidth to spare to accommodate future enhancements up to 21.6G b/s.
5. It support RSA for digital content protection.
Displayport SMT Type, 20pos, W/o Flange, Receptacle Connector
Feature:
Feature:
1. Enable a digital display connection as a viable alternative to VGA
2. Displayport handles digital transfers at rates up to 10.8Gbps. Support 2560x1600.2048x1536 high resolution.
3. It support deep color 30/36 bit.
4. It supports digital audio and video, with bandwidth to spare to accommodate future enhancements up to 21.6G b/s.
5. It support RSA for digital content protection.
Electrical:
Contact Current Rating: 0.5A Min
Voltage Rating: 40V AC(rms)
Withstanding Voltages:500V AC (for 1 minute)
Insulation Resistance: 100M ohms Min.
Contact Resistance: 30m ohms Max.
Working Temperature: -25ºC ~ +85ºC
Mechanical:
Insulator Material: High Temperature Thermoplastic (UL94V-0 rated)
Contact: Copper alloy
Insertion Force: 39.2N Max
Withdraw Force: 9.8N Min
Durability mating cycle: 10,000 cycles min.
Contact Current Rating: 0.5A Min
Voltage Rating: 40V AC(rms)
Withstanding Voltages:500V AC (for 1 minute)
Insulation Resistance: 100M ohms Min.
Contact Resistance: 30m ohms Max.
Working Temperature: -25ºC ~ +85ºC
Mechanical:
Insulator Material: High Temperature Thermoplastic (UL94V-0 rated)
Contact: Copper alloy
Insertion Force: 39.2N Max
Withdraw Force: 9.8N Min
Durability mating cycle: 10,000 cycles min.
Applications: PC,Projector,DVD Player,Set Top Box,LCD TV/PDP TV
2007-11-21
Micro USB Connector
Size
B type MU-05F4-14/23 8.8*6.0*2.9
AB type MU-05F4-15/22 8.8*6.0*2.9 (FOR OTG)
B type MU-05F4-14/23 8.8*6.0*2.9
AB type MU-05F4-15/22 8.8*6.0*2.9 (FOR OTG)
特長
1. 節省空間 (小型超薄化) ， 比較MINI USB 體積空間減少了50%以上。
2. 長壽命 ，高達10000 次插拔。
3. 相容 USB1.1 (低速 1.5Mb/S, 全速 12Mb/s) 和 USB 2.0 (高速 480Mb/s)。
4. 支援 USB OTG功能， 在無主機 (PC)情況下 ，可直接實現資料傳輸。
5. 同時提供數據傳輸與充電 (最大供電能力為 1800mA)。
6. 防呆(盲插) 結構設計 。
規格
1.ELECRTICAL PROPERTIES:
1-1.CONTACT CURRENT RATING:1.8A(ONLY PIN1.5) AT THE SAME TIME
0.5A AT CONTACT PIN 2,3,4 OTHER 1A(ONLY PIN2,3 4).
1-2.CONTACT RESISTANCE:30m 0hm MAX.
1-3.INSULATION RESISTANCE:100M 0hm MAX.
1-4.DIELECTRIC WITHSTANDING VOLTAGE :AC 100V AC/1 MINUTE 10mA.
2.MATERIAL:
2-1.PIN:PHOSPHOR BRONZE.
2-2.HOUSING:LCP.
2-3.SHELL:BRASS.
3.PLATING:
3-1.PIN:GOLD 10u" MIN ON CONTACT AREA.
UNDERPLATED NICKEL 60u" MIN OVER ALL.
3-2.SHELL:NICKEL 60u" MIN OVER ALL.
應用
MOBILE PHONE, DSC, DV, PDA, PND, MP3, MP4, NB, PC AND OTHER MOBILE DEVICE.
1. 節省空間 (小型超薄化) ， 比較MINI USB 體積空間減少了50%以上。
2. 長壽命 ，高達10000 次插拔。
3. 相容 USB1.1 (低速 1.5Mb/S, 全速 12Mb/s) 和 USB 2.0 (高速 480Mb/s)。
4. 支援 USB OTG功能， 在無主機 (PC)情況下 ，可直接實現資料傳輸。
5. 同時提供數據傳輸與充電 (最大供電能力為 1800mA)。
6. 防呆(盲插) 結構設計 。
規格
1.ELECRTICAL PROPERTIES:
1-1.CONTACT CURRENT RATING:1.8A(ONLY PIN1.5) AT THE SAME TIME
0.5A AT CONTACT PIN 2,3,4 OTHER 1A(ONLY PIN2,3 4).
1-2.CONTACT RESISTANCE:30m 0hm MAX.
1-3.INSULATION RESISTANCE:100M 0hm MAX.
1-4.DIELECTRIC WITHSTANDING VOLTAGE :AC 100V AC/1 MINUTE 10mA.
2.MATERIAL:
2-1.PIN:PHOSPHOR BRONZE.
2-2.HOUSING:LCP.
2-3.SHELL:BRASS.
3.PLATING:
3-1.PIN:GOLD 10u" MIN ON CONTACT AREA.
UNDERPLATED NICKEL 60u" MIN OVER ALL.
3-2.SHELL:NICKEL 60u" MIN OVER ALL.
應用
MOBILE PHONE, DSC, DV, PDA, PND, MP3, MP4, NB, PC AND OTHER MOBILE DEVICE.
2007-08-09
超小型 ROTARY ENCODER SWITCH
SHINMEI SSS-60MD SERIES
TYPE & SIZE
應用 DSC, DV, MP3, GPS, PHONE, MINI DEVICE...
TYPE & SIZE
SSS-60MD-8-1-T20 8 段 6.8*6.8*3.1mm
SSS-60MD-8-1-T20 10段 6.8*6.8*3.1mm
SSS-60MD-8-1-T20 12段 6.8*6.8*3.1mm
特長
小型化模式開關,節省空間
段落感清晰,避免操作失誤
規格
1. RATING : DC12V 50mA Max
2. 一回路 共通3. 壽命 15~20回轉/分 7000回 (1回轉=360度)
應用 DSC, DV, MP3, GPS, PHONE, MINI DEVICE...
